Stacker Machine
Stacker machines are vehicles used for carrying and stacking loads. The lifting and moving process is performed manually with the user's strength. The carrier forks are fixed, but adjustable forks allow lifting loads of different sizes. These models vary depending on their carrying and lifting capacities.
Stackers are designed to help workers transport a specific load easily and safely. They are used in warehouses, markets, construction sites, manufacturing, assembly, and similar businesses.
OHC Lift can be manufactured in desired sizes and features, considering physical conditions. Regular maintenance ensures long-lasting use.

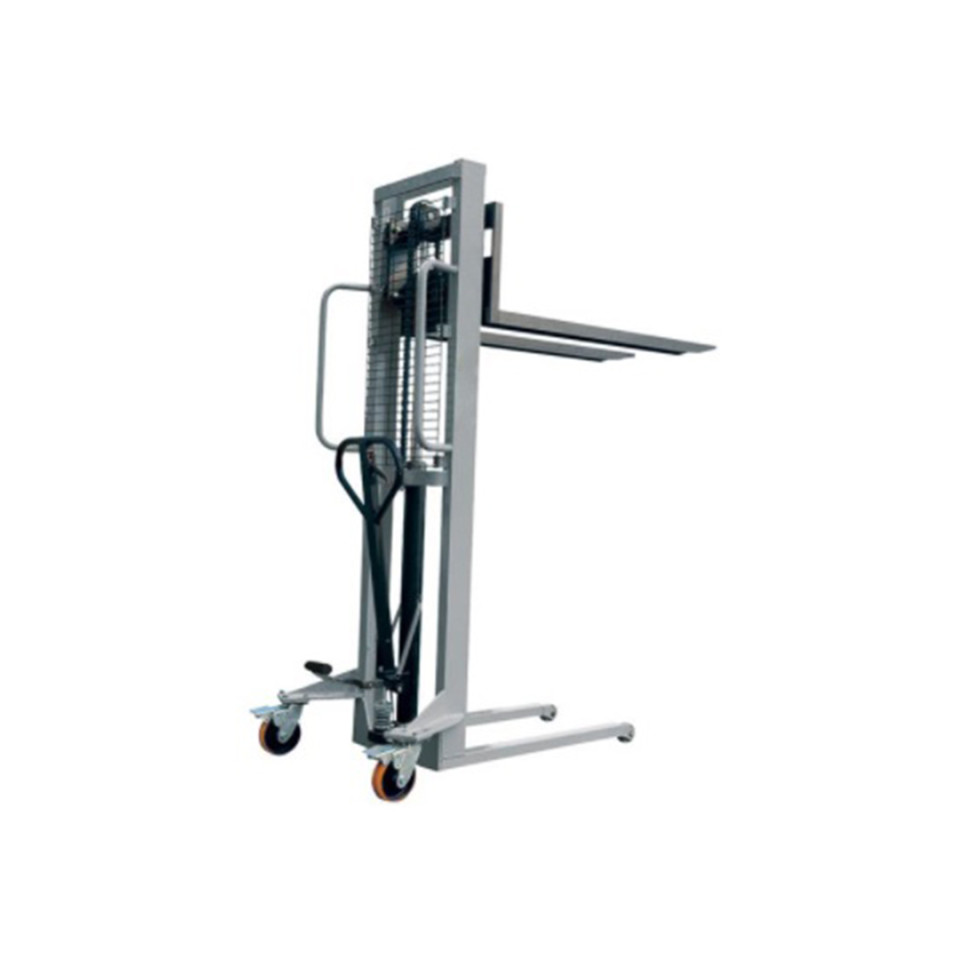

A manual stacker is a machine needed in many work areas. These machines operate on a highly practical principle, performing both lifting and movement functions. The lifting process is hydraulic and manual, while the movement is carried out manually by the operator. Therefore, it is called a manual stacker.
These products, with varying lifting capacities, generally handle average and slightly above-average weights. They can carry weights ranging from 500 to 1500 kilograms over short distances with ease. These products, which have different lifting capacities, are mainly preferred in manufacturing and transportation businesses.
What is a Manual Stacker?
Questions like what a manual stacker is and how it works are common among those interested in these machines. A manual stacker is used for both load transportation and stacking. These products emphasize speed while also standing out in terms of safety. Additionally, their ability to lift heavier loads makes them highly effective.
Unlike forklifts, these machines can reach areas where forklifts cannot enter. They come in different sizes and are operated by a single person. The safety of the operator is crucial, and experience in handling the machine is essential. Since these machines lift heavy loads, user expertise is vital.
What are the Features of a Manual Stacker?
The first notable feature of a manual stacker is its load-carrying capacity. Manual stackers are typically designed to carry around 1 ton. However, there are models capable of handling slightly more or less than this average capacity.
Manual stackers are not only for transportation and storage but also for lifting purposes. The lifting range of these products varies between 1 and 3 meters, making it an essential factor when choosing the right model for a particular workspace.
Manual Stacker Prices
Manual stacker prices vary depending on many factors. High-quality, durable, and stainless-steel stackers tend to have higher prices. Additionally, brand and model differences also affect the cost.
The price gap between the latest models and older ones is quite noticeable. Manual stacker machines are widely used in workplaces due to their cost-effectiveness and ability to meet specific needs.
Product Code | MS.10-16 | MS.15-16 | MS.20-16 | MS.10-25 | MS.10-30 |
Lifting Capacity | 1.000 kg | 1.500 kg | 2.000 kg | 1.000 kg | 1.000 kg |
Load Center | 400 mm | 400 mm | 400 mm | 400 mm | 400 mm |
Max. Fork Height | 1.600 mm | 1.600 mm | 1.600 mm | 2.500 mm | 3.500 mm |
Min. Fork Height | 90 mm | 90 mm | 90 mm | 90 mm | 90 mm |
Fork Outside Width | 300-800 mm | 300-800 mm | 300-800 mm | 300-800 mm | 300-800 mm |
Fork Length | 1.150 mm | 1.150 mm | 1.150 mm | 1.150 mm | 1.150 mm |
Machine Length | 1.500 mm | 1.500 mm | 1.500 mm | 1.500 mm | 1.500 mm |
Machine Height | 2.100 mm | 2.100 mm | 2.100 mm | 1.810 mm | 2.060 mm |
Machine Width | 865 nn | 865 nn | 865 nn | 865 nn | 865 nn |
Front Wheel | 74×70 mm | 74×70 mm | 74×70 mm | 74×70 mm | 74×70 mm |
Rear Wheel | 150×42 mm | 150×42 mm | 150×42 mm | 150×42 mm | 150×42 mm |
Weight | 250 kg | 260 kg | 285 kg | 335 kg | 370 kg |
