Today, effective transportation of loads in logistics, production, warehouse and commercial areas is of vital importance. At this point, freight elevators stand out as solutions that provide labor saving and operational efficiency. So, what is a freight elevator and what types are there?
What is a Freight Elevator?
A freight elevator is a hydraulic or mechanical system designed to carry heavy and bulky loads vertically from one floor or level to another. Freight elevators, which are frequently used especially in industrial facilities, warehouses and commercial areas, offer a safe and fast transportation solution.
Freight Elevator Types
Freight elevators are special systems designed according to the type and capacity of the loads to be transported and the characteristics of the area in which they will be used. Freight elevators, produced in different types for various needs, have a wide range of uses, from industrial facilities to commercial enterprises. These elevators are basically divided into two main groups: scissor and column freight elevators. Both types have different advantages and usage features.
Scissor Lift
Scissor lifts are hydraulically operated mechanisms designed to transport loads to a certain height. This type, which draws attention with its scissor-like structure, offers an effective solution for transporting heavy loads by moving the platform steadily and safely.
Areas of Use
Scissor lifts are generally preferred in industrial and commercial areas. Warehouses, factories and vehicle loading ramps are among the areas where these elevators are most commonly used. It facilitates load transportation and increases operational efficiency, especially in areas where there is a difference in ground.
Advantages
The biggest advantage of this type of elevators is that they have the durability to carry very heavy loads. With its space-saving structure, it offers an effective solution in limited spaces. In addition, thanks to its durable material and design, it is long-lasting and requires minimal maintenance. The stable and safe operating principle increases safety for both the user and the loads carried.
How Does a Scissor Lift Work?
Scissor lifts have a scissor mechanism powered by hydraulic systems. This mechanism allows the platform to move up or down. The actuation of hydraulic fluid by pressure allows the scissors to open and close, raising or lowering the platform. Keeping the platform balanced and stable ensures that the loads are transported safely.

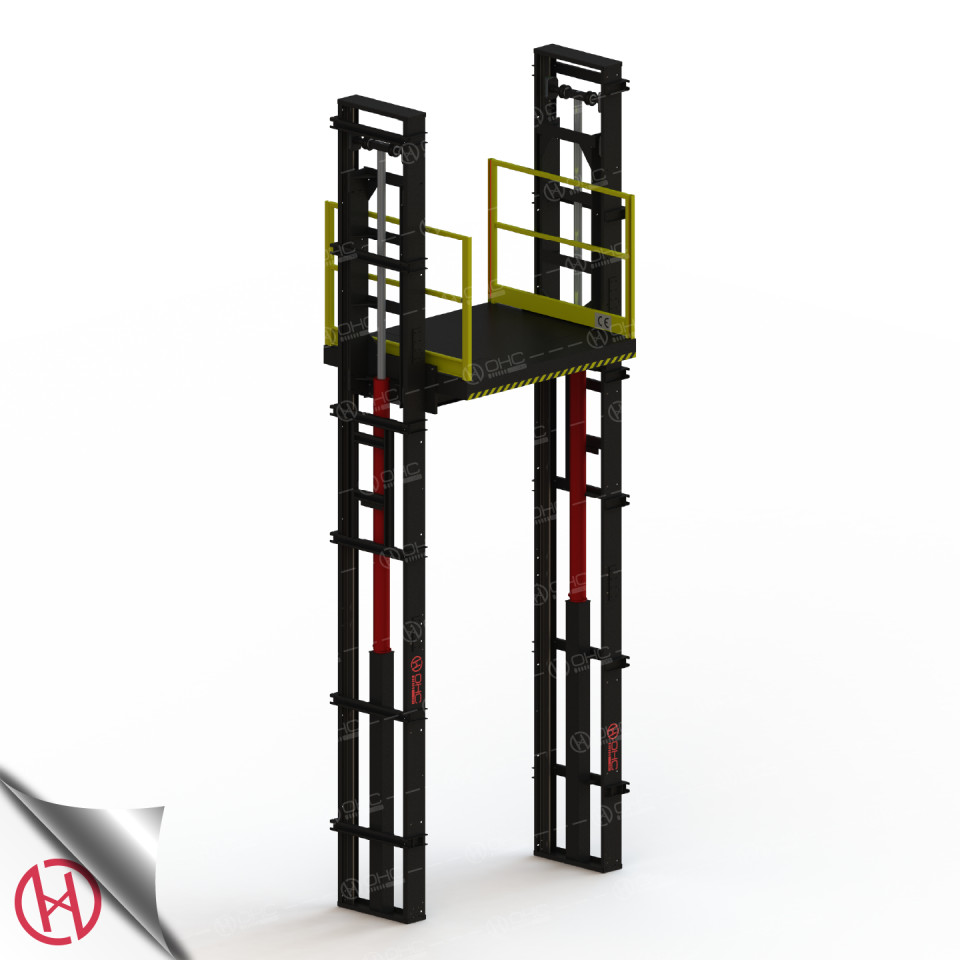

Column Freight Elevator
Column freight elevators consist of a platform system mounted on one or more vertical columns. These elevators are generally preferred in situations requiring vertical mobility and offer an ideal solution for use in multi-storey buildings.
Usage Areas
Column freight elevators have a wide range of uses, from loading and unloading areas to store and warehouse interiors. It is used to safely transport heavy loads between floors, especially in multi-storey businesses. Thanks to its compact structure, it can work effectively in narrow spaces.
Advantages
These types of elevators attract attention with their high working capacity. It has the advantage of being able to reach greater heights in multi-storey buildings. Compared to scissor lifts, its vertical mobility is more advanced, which provides more precise and faster transportation. In addition, its compact and aesthetic design makes it easily applicable even in smaller areas.
How Does a Column Freight Elevator Work?
Column freight elevators have a mechanism that works with motor and rope systems. This system allows the platform to move up and down along the columns. The motor adjusts the position of the platform by pulling or loosening the ropes. This operating principle offers an ideal solution to the load transportation needs of multi-storey buildings and ensures high efficiency.
Both freight elevator types facilitate transportation operations in industrial and commercial areas. The right choice should be made depending on the application area and needs. For detailed information about the dimensions, you can read our article titled Freight Elevator Dimensions.
What Should Be Considered When Purchasing?
The main elements to consider when choosing a freight elevator are:
- Carrying Capacity: The capacity should be determined in accordance with the needs of the area to be used.
- Usage Area: Scissor lift or It should be evaluated which of the column models is more suitable for the area.
- Safety Precautions: The presence of emergency brake systems and sensors should be checked.
- Ease of Maintenance: It is important that the systems are long-lasting and maintenance-friendly.
Maintenance and Security
For a safe and long-lasting freight elevator use, regular maintenance is important. The following should be taken into consideration:
Periodic Maintenance: Mechanical and hydraulic systems of elevators should be checked regularly.
Emergency Equipment: It should be confirmed that brake systems, sensors and emergency stop mechanisms are in working order.
Training: Proper training of users, It ensures the protection of systems against malfunctions caused by misuse.
Innovations in Technology
Modern technologies make freight elevators more efficient and safe. Some of these innovations:
- Smart Control Systems: IoT-supported sensors monitor elevator movements and warn of possible problems in advance.
- Energy Efficiency: New generation engines provide cost savings by consuming less energy.
- Modular Designs: Modular solutions, flexible structures suitable for different areas.
Optimize Your Solutions with OHC Lift
OHC Lift As OHC Lift, we offer special solutions for your projects with our expertise in hydraulic freight elevator systems. Whether you need a scissor or column freight elevator, we increase your operational efficiency with our quality and reliable products.
Contact us to get more information about freight elevators and get a customized solution!
